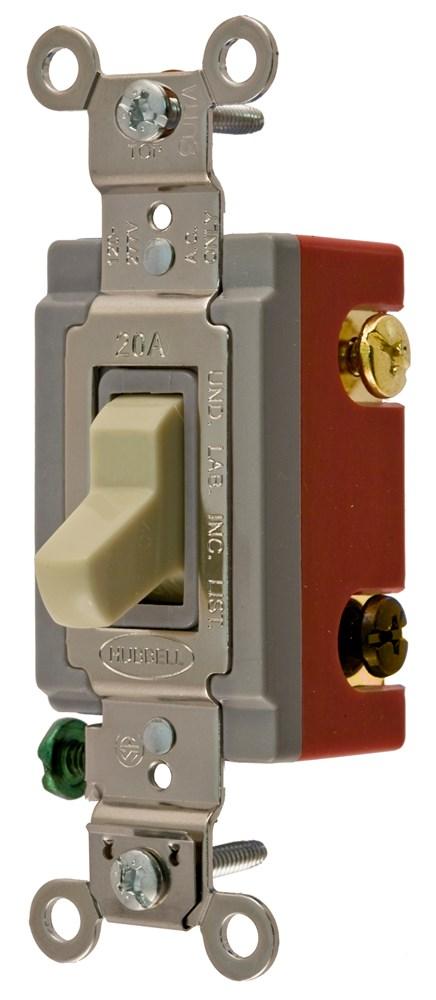

4W TOG, IND GRD, 20A 120/277V, IV, USA by Hubbell Wiring Device-Kellems
- Part Number: HBL1224IU
- UPC: 00783585005041
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Industrial Grade, Toggle Switches, General Purpose AC, Four Way, 20A120/277V AC, Back and Side Wired, Ivory, USA
Specifications
Details
Electrical Category:
Control And Automation
Electrical Subcategory:
Switches
Electrical Subtype:
Toggle Switch
Action:
Positive Snap
Actuator:
Toggle
Amperage Rating:
20A
Application:
Extra Heavy Duty Industrial
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Ivory
Connection:
Back and Side Wired
Contact Configuration:
Two Position
Contact Rating:
Per UL 20
Country Of Origin:
US
Enclosure:
None
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Insulation:
None
Length:
4.1600 in
Mounting:
Screw Mount
Number Of Poles:
Four Way
Operating Cycles:
50,000 Cycles
Operating Temperature:
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
RoHS Compliance:
No
Size:
Standard Sized
Special Features:
Made in the USA
Standard:
NEMA WD1, UL20
Sub Brand:
AC Toggle Switches
Type:
General Purpose Switches
UNSPSC:
39122211
Voltage Rating:
120/277
Wattage:
5540
Weight:
0.200 L
Manufactured By:
Hubbell Wiring Device-Kellems
