![45 DEG MALE L/T CONN, 1/2", STEEL](/vendors/3920/large/WBP_H0754_PRODIMAGE_1200.jpg "45 DEG MALE L/T CONN, 1/2", STEEL")

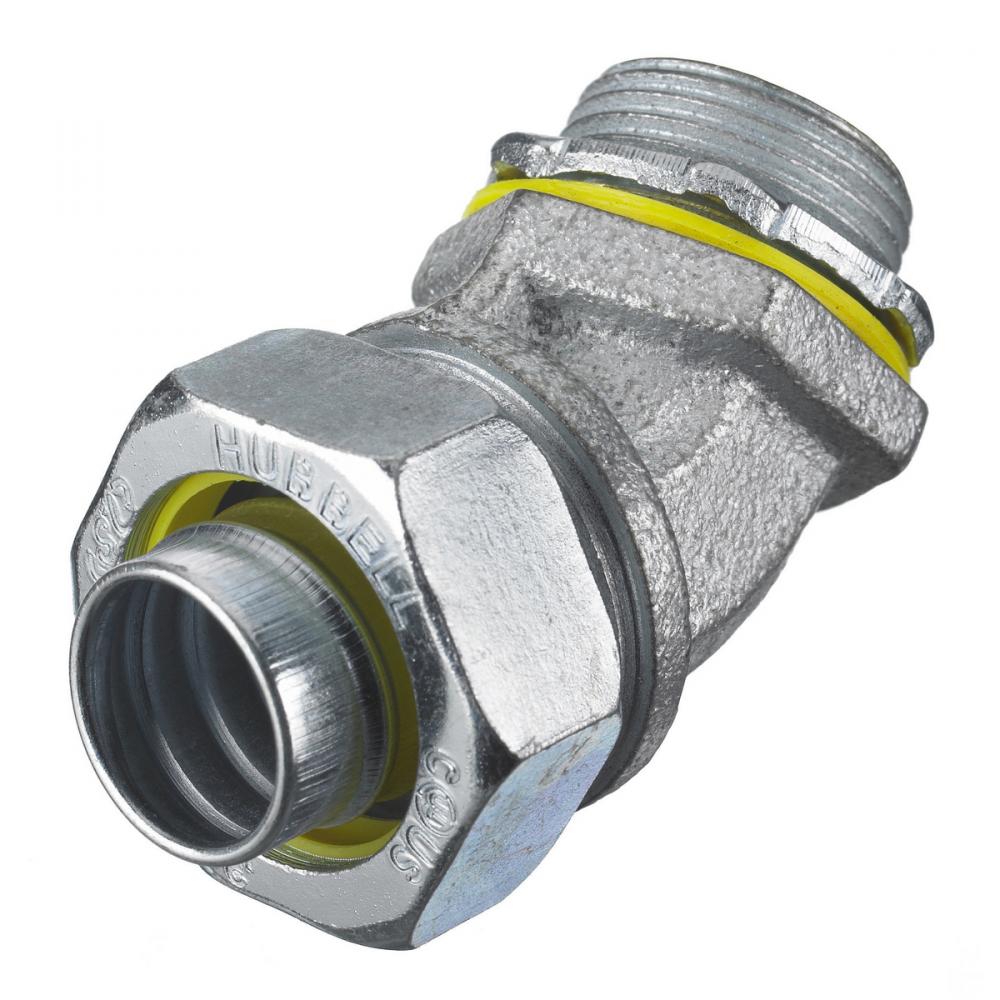

45 DEG MALE L/T CONN, 1/2", STEEL by Hubbell Wiring Device-Kellems
- Part Number: H0504
- UPC: 00783585034423
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2)
Product Overview
Kellems Wire Management, Liquidtight System, 45 Degree Male Liquid Tight Connector, 1/2", Steel, Non-Insulated
Specifications
Details
Electrical Category:
Lugs Plugs And Connectors
Electrical Subcategory:
Connectors And Accessories
Application:
For use with Liquidtight Metal conduit and PolyTuff I Non-Metallic conduit
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Metallic
Connection:
Cap Nut
Country Of Origin:
CN
Environmental Conditions:
Suitable For Use In Wet Locations When A Listed Sealing Ring Is Used Between Box And Fitting
Finish:
Metallic
Installation Link:
Line Drawing Link:
Material:
Steel, Zinc Plated
Mounting:
Between Enclosure and Conduit
NEMA Rating:
Suitable for use in hazardous locations per Class 1 Div 2, Class II Div 1 & 2, Class III Div 1 & 2
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Size:
1/2 in
Spec Sheet:
Special Features:
Non-Insulated
Standard:
CSA Certified;UL 514B
Sub Brand:
Kellems Wire Management
Tech Drawing Link:
Temperature Rating:
-40 Deg F to 225 Deg F (-40 Deg C to 107 Deg C)
Type:
Metallic Liquidtight Fittings
UNSPSC:
39121420
Warranty Link:
Weight:
.250 L
Manufactured By:
Hubbell Wiring Device-Kellems
