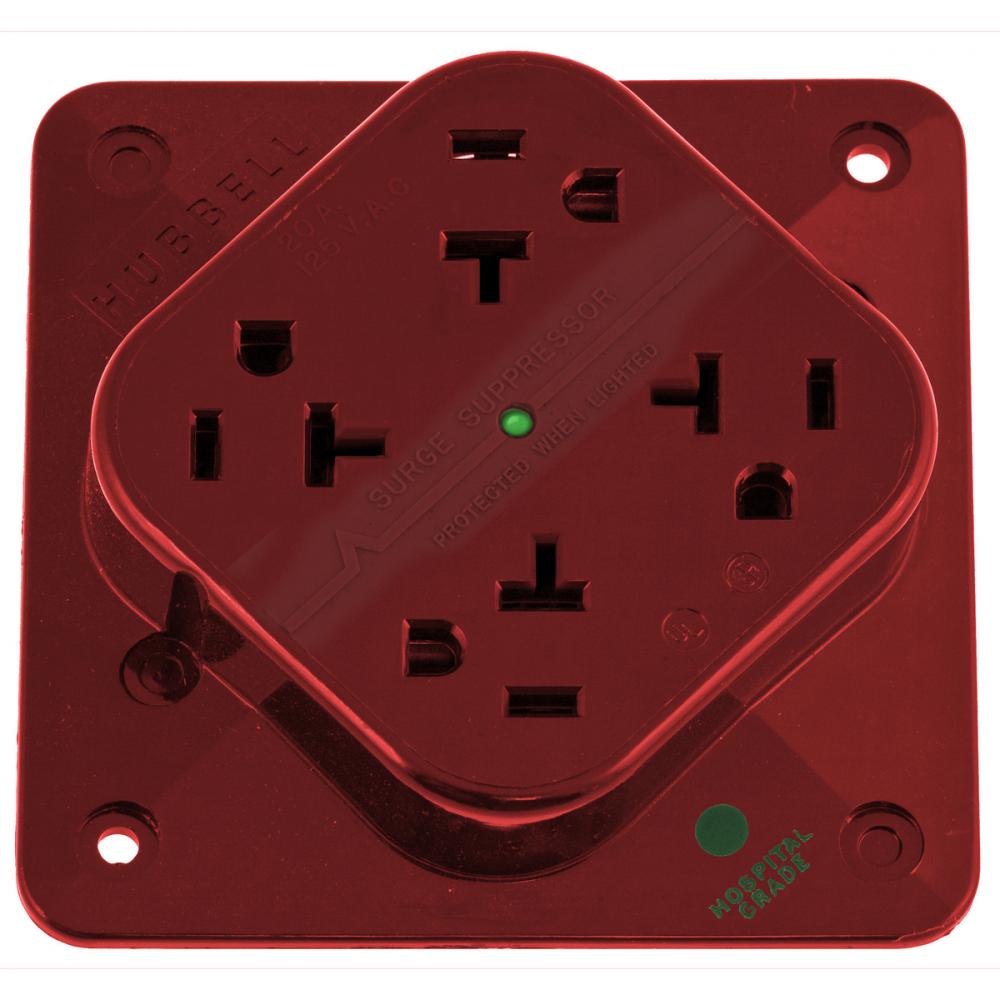

4-PLEX HG SPD RCPT, 20A 125V, 5-20R, RD by Hubbell Wiring Device-Kellems
- Part Number: HBL420HRS
- UPC: 00783585252353
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Straight Blade Devices, 4-Plex Receptacle, Commercial Grade, Surge Protected, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Red
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
4-Plex Hospital Grade
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Red
Connection:
Back Wired Screw Terminals
Country Of Origin:
PR
Environmental Conditions:
Indoor Dry Unless Protected By Additional Means
Installation Link:
Line Drawing Link:
Material:
Polycarbonate
Mounting:
Screw Mount
NEMA Rating:
5-20R
Number Of Poles:
2-Pole
Number Of Wires:
3-Wire Grounding
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single Phase
Size:
Standard Sized Product
Spec Sheet:
Special Features:
4 Receptacles in one, Surge Protective Device
Standard:
Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186
Sub Brand:
Straight Blade Devices
Tech Drawing Link:
Type:
4-PLEX
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
2,500
Weight:
.250 L
Wire Size:
#14 AWG to #12 AWG
Manufactured By:
Hubbell Wiring Device-Kellems
