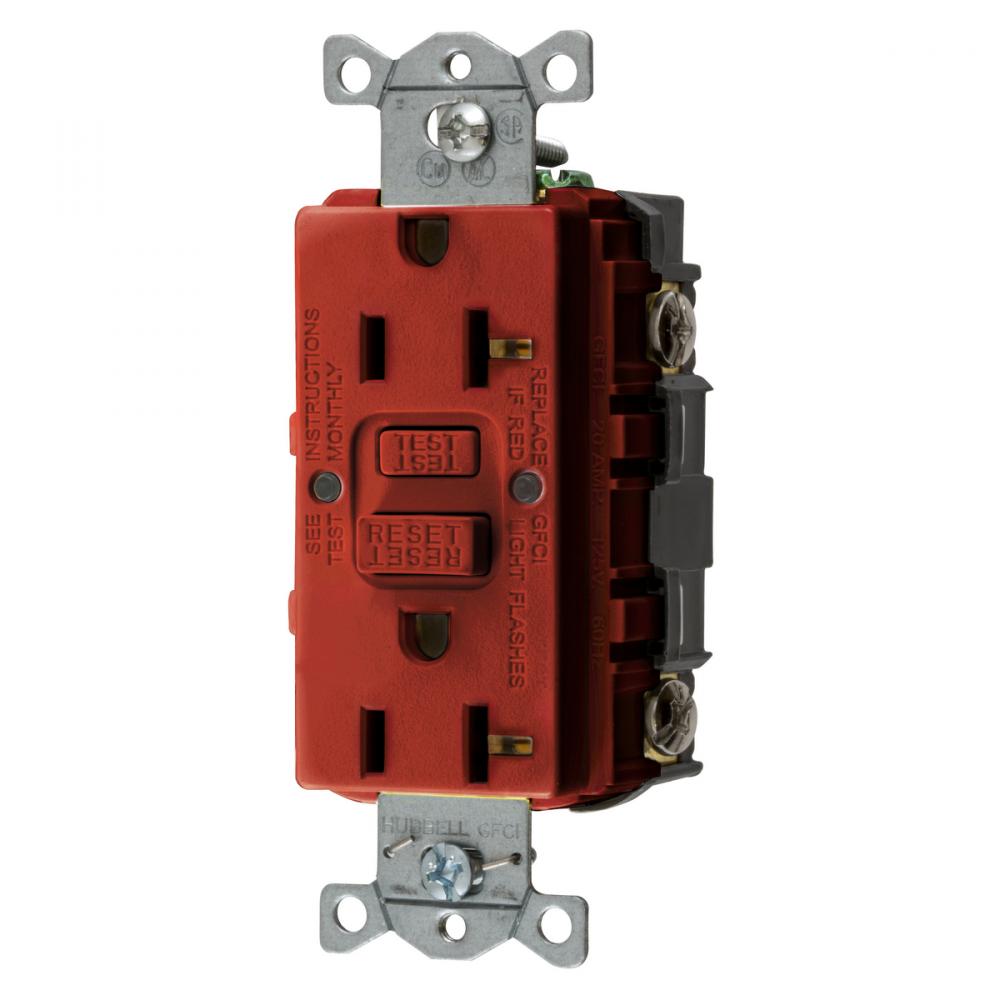

20A COMM SELF TEST US GFR RED by Hubbell Wiring Device-Kellems
- Part Number: GFRST20RU
- UPC: 00883778124259
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Power Protection Products, Straight Blade Devices, Receptacle, GFCI, Commercial Grade, Self Test, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Red, US Product.
Specifications
Details
Electrical Category:
Electrical Distribution Equipment
Lugs Plugs And Connectors
Electrical Subcategory:
Receptacles
Receptacle
Amperage Rating:
20
Application:
GFCI Protection
Brand Name:
WIRING DEVICE-KELLEMS
Color:
Red
Connection:
Terminal Screws
Country Of Origin:
US
Dielectric Strength:
1500 volts between (line H to load H), (line H to face H), (line N to load N) and (line N to face N)
Environmental Conditions:
Dry Indoors unless Protected by Additional Means
Installation Link:
Insulation:
Insulated per UL
Line Drawing Link:
Material:
Composite
Mounting:
Mounting Screw
NEMA Rating:
5-20R
Number Of Wires:
3
Order Minimum:
1.000 EA
Order Multiple:
1.000 EA
Phase:
Single
Size:
Standard Sized Product
Spec Sheet:
Special Features:
Self Test, USA Version
Standard:
Meets All NEC® Requirements
Sub Brand:
Ground Fault Receptacle
Tech Drawing Link:
Temperature Rating:
-40 Degrees C to 75 Degrees C
Type:
Standard
UNSPSC:
39121406
Voltage Rating:
125
Warranty Link:
Wattage:
2500
Weight:
.400 L
Wire Size:
#14AWG to #12AWG
Manufactured By:
Hubbell Wiring Device-Kellems
